Twice the holes

half the time

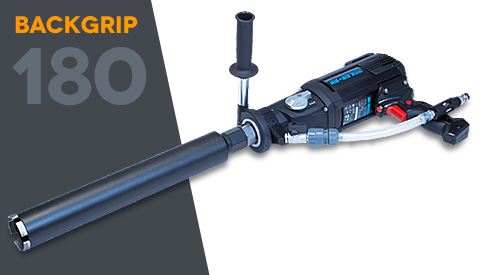

Karat® 180 BG NEW!

Versatile Core Drilling Unit with Back Grip for Bit Diameters up to 180 mm (wet). Use Wet or Dry, Handheld or Rig Mounted. Ideal for vertical holes.

more info

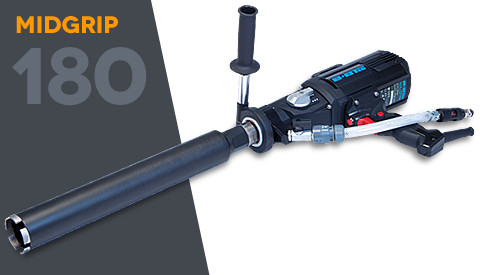

Karat® 180 MG NEW!

Versatile Core Drilling Unit with Mid Grip for Bit Diameters up to 180 mm (wet). Use Wet or Dry, Handheld or Rig Mounted. Ideal for horizontal holes.

more info

The New Karat® 180 BG (back grip) and Karat® 180 MG (mid grip) Diamond Core Drill Units offer the most efficient solution for just about any drill job up to 180 mm

  • For wet or dry use, handheld or rig mounted
  • For bit diameters up to Ø180 mm (wet) or Ø202 mm (dry)

Features

  • Powerful 2400W motor
  • 3-Speed Gearing for optimal drilling performance regardless of the bit diameter
  • Robust aluminum housing
  • Pulse Electronic Motor Protection System alerts against overload
  • Latest Generation RGB LED’s indicates overload, proper drilling pressure, slip clutch, soft start and undervoltage protection
  • Separate Soft Start Switch for a drill start at half speed for 10 sec.
  • 360° rotating water connection
  • Waterflow indicator
  • 360° rotating auxiliary handle
  • Waterlevels
  • 1¼ - ½” drill shaft
  • Ergonomic back grip
  • PRCD/GFCI switch
  • Optional shoulder pad, second hand grip and dry drill adapter

Specifications

Power Watt / Voltage 2400 / 115
No load speed 1-2-3 Gear min-1 780 - 1690 - 3520
Bit range
Ideal in reinforced concrete Ø mm 16 - 160
1. Gear Wet / Dry Ø mm 70 - 180 / 122 - 202
2. Gear Wet / Dry Ø mm 35 - 70 / 60 - 122
3. Gear Wet / Dry Ø mm 8 - 35 / 37 - 60
Dimensions L xWxH mm 430 x 405 x 295
Weight kg 6.8
